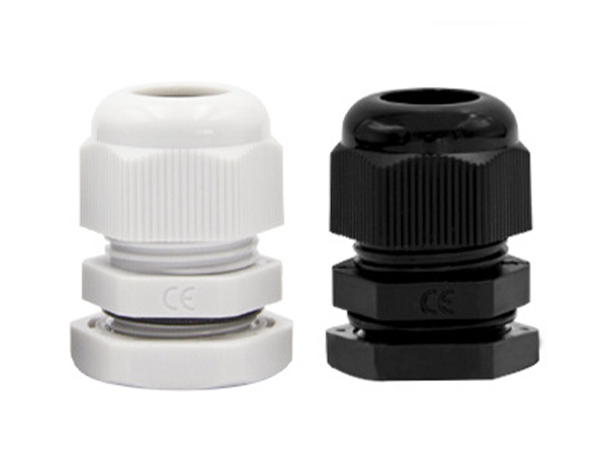

DJ-SD 环保尼龙电缆接头

发布时间: 2021-08-23 13:49

DJ-SD 环保尼龙电缆接头

螺牙规格：管螺纹G/PF牙，公制螺纹Metric,德制螺纹PG，美制NPT牙

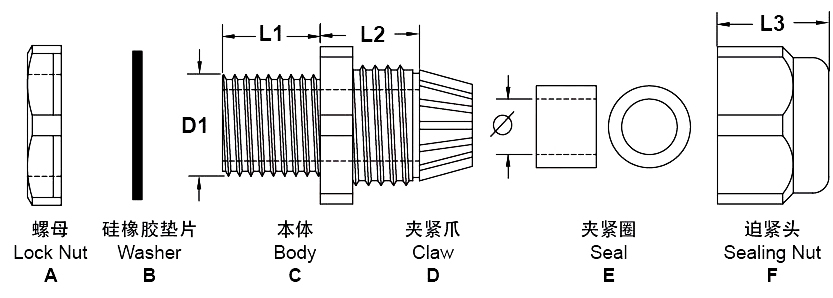

产品材质：A.C.D.F部位均采用环保尼龙66(NYLON66)原料制成。B耐老化硅橡胶制成。 E采用耐油丁腈橡胶制成。

产品认证：CE,环保ROHS。

颜色种类：灰白色，黑色。

防护等级：在规定的卡口范围内，并使用防水垫片及夹紧圈旋紧迫紧头，达到IP68。

工作温度：静态-40°C至85°C。

使用方法：先将本体穿于机板，再以螺母扭紧固定，线缆穿过迫紧头，扭紧迫紧头将其固定。

产品特性：夹紧爪与夹紧圈一体成型之设计，配合迫紧头装配省时便利，夹紧电缆范围大，抗拉力强，可防水、防尘、抗盐、耐酸碱、酒精、油、脂及一般溶剂。应用于电缆出线端的固定保护及密封防尘水。

备注：成品均配带螺母A及防水垫片B

订货号		螺牙规格	适用电	螺纹外径	机板开孔	螺纹长度	板手
Order No.		Thread	缆外径	Thread	Panel	Thread	Spanner
			CableRange	O.D.	Mounting	Length	size
灰白色	黑色		Φ	D1	Hole	L1	A&F
White	Black
短螺纹标准型standard
DJ-S-M12W	DJ-S-M12B	M12×1.5	3-6.5	12	12-12.3	8	17/16
DJ-S-M14W	DJ-S-M14B	M14×1.5	4-8	14	14-14.3	8	19/19
DJ-S-M16W	DJ-S-M16B	M16×1.5	4-8	16	16-16.3	8	22/19
DJ-S-M16DW	DJ-S-M16DB	M16×1.5	5-10	16	16-16.3	8	22/22
DJ-S-M18W	DJ-S-M18B	M18×1.5	5-10	18	18-18.3	8	24/22
DJ-S-M20W	DJ-S-M20B	M20×1.5	6-12	20	20-20.3	9	27/24
DJ-S-M20DW	DJ-S-M20DB	M20×1.5	10-14	20	20-20.3	10	27/27
DJ-S-M22W	DJ-S-M22B	M22×1.5	10-14	22	22-22.3	10	30/27
DJ-S-M24W	DJ-S-M24B	M24×1.5	12-15	24	24-24.4	10	30/27
DJ-S-M25SW	DJ-S-M25SB	M25×1.5	9-16	25	25-25.4	10	32/33
DJ-S-M25W	DJ-S-M25B	M25×1.5	13-18	25	25-25.4	10	32/33
DJ-S-M27W	DJ-S-M27B	M27×1.5	13-18	27	27-27.4	10	36/33
DJ-S-M30W	DJ-S-M30B	M30×1.5	16-21	30	30-30.4	11	37/36
DJ-S-M32W	DJ-S-M32B	M32×1.5	16-21	32	32-32.4	11	39/37
DJ-S-M32DW	DJ-S-M32DB	M32×1.5	18-25	32	32-32.4	12	39/42
DJ-S-M36W	DJ-S-M36B	M36×1.5	18-25	36	36-36.4	12	41/42
DJ-S-M40W	DJ-S-M40B	M40×1.5	22-32	40	40-40.4	14	50/53
DJ-S-M50W	DJ-S-M50B	M50×1.5	32-38	50	50-50.4	14	60/61
DJ-S-M63W	DJ-S-M63B	M63×1.5	37-44	63	63-63.4	14	74/67
DJ-S-M75W	DJ-S-M75B	M75×2.0	53-60	75	75-75.4	25	86/82
夹紧圈加厚型thickening
DJ-S-M10W	DJ-S-M10B	M10×1	3-6.5	12	12-12.3	8	15/15
DJ-S-M12SW	DJ-S-M12SB	M12×1.5	2-5	12	12-12.3	8	17/16
DJ-S-M14SW	DJ-S-M14SB	M14×1.5	2-6	14	14-14.3	8	19/19
DJ-S-M16SW	DJ-S-M16SB	M16×1.5	2-6	16	16-16.3	8	22/19
DJ-S-M18SW	DJ-S-M18SB	M18×1.5	3-7	18	18-18.3	8	24/22
DJ-S-M20SW	DJ-S-M20SB	M20×1.5	5-9	20	20-20.3	9	27/24
DJ-S-M22SW	DJ-S-M22SB	M22×1.5	7-12	22	22-22.3	10	30/27
DJ-S-M24SW	DJ-S-M24SB	M24×1.5	7-12	24	24-24.4	10	30/27
DJ-S-M25SW	DJ-S-M25SB	M25×1.5	9-16	25	25-25.4	10	35/33
DJ-S-M27SW	DJ-S-M27SB	M27×1.5	9-16	27	27-27.4	10	36/33
DJ-S-M30SW	DJ-S-M30SB	M30×1.5	7-15	30	30-30.4	11	37/36
DJ-S-M32W(7-15)	DJ-S-M32B(7-15)	M32×1.5	18-25	32	32-32.4	11	39/37
DJ-S-M32W(13-20)	DJ-S-M32B(13-20)	M32×1.5	18-25	32	32-32.4	12	41/42
DJ-S-M36SW	DJ-S-M36SB	M36×1.5	13-20	36	36-36.4	12	41/42
DJ-S-M40SW	DJ-S-M40SB	M40×1.5	20-26	40	40-40.4	14	50/53
DJ-S-M50SW	DJ-S-M50SB	M50×1.5	25-31	50	50-50.4	14	60/61
DJ-S-M63SW	DJ-S-M63SB	M63×1.5	29-35	63	63-63.4	14	74/67
DJ-S-M75SW	DJ-S-M75SB	M75×2.0	48-55	75	75-75.4	25	86-82
型号		螺牙规格	适用电	螺纹外径	机板开孔	螺纹长度	板手
Item No.		Thread	缆外径	Thread	Panel	Thread	Spanner
			CableRange	O.D.	Mounting	Length	size
灰白色	黑色		￠	D1	Hole	L1	A&F
White	Black
加长标准型
DJ-S-M12LW	DJ-S-M12LB	M12×1.5	3-6.5	12	12-12.3	15	17/16
DJ-S-M16LW	DJ-S-M16LB	M16×1.5	4-8	16	16-16.3	15	22/19
DJ-S-M16DLW	DJ-S-M16DLB	M16×1.5	5-10	16	16-16.3	15	22/22
DJ-S-M18LW	DJ-S-M18LB	M18×1.5	5-10	18	18-18.3	15	24/22
DJ-S-M20LW	DJ-S-M20LB	M20×1.5	6-12	20	20-20.3	15	27/24
DJ-S-M20DLW	DJ-S-M20DLB	M20×1.5	8-14	20	20-20.3	15	27/27
DJ-S-M22LW	DJ-S-M22LB	M22×1.5	10-14	22	22-22.3	15	30/27
DJ-S-M24LW	DJ-S-M24LB	M24×1.5	12-15	24	24-24.4	15	30/27
DJ-S-M25SLW	DJ-S-M25SLB	M25×1.5	9-16	25	25-25.4	15	32/33
DJ-S-M25LW	DJ-S-M25LB	M25×1.5	13-18	25	25-25.4	15	32/33
DJ-S-M32LDW	DJ-S-M32LDB	M32×1.5	18-25	32	32-32.4	16	41/42
DJ-S-M40LW	DJ-S-M40LB	M40×1.5	22-32	40	40-40.4	18	50/53
DJ-S-M50LW	DJ-S-M50LB	M50×1.5	32-38	50	50-50.4	20	60/61
DJ-S-M63LW	DJ-S-M63LB	M63×1.5	37-44	63	63-63.4	19	74/67
加长加厚型
DJ-S-M12SLW	DJ-S-M12SLB	M12×1.5	2-5	12	12-12.3	15	17/16
DJ-S-M14SLW	DJ-S-M14SLB	M14×1.5	2-6	14	14-14.3	15	19/19
DJ-S-M16SLW	DJ-S-M16SLB	M16×1.5	2-6	16	16-16.3	15	22/19
DJ-S-M18SLW	DJ-S-M18SLB	M18×1.5	3-7	18	18-18.3	15	24/22
DJ-S-M20SLW	DJ-S-M20SLB	M20×1.5	5-9	20	20-20.3	15	27/24
DJ-S-M22SLW	DJ-S-M22SLB	M22×1.5	7-12	22	22-22.3	15	30/27
DJ-S-M32LW(13-20)	DJ-S-M32LB(13-20)	M32×1.5	13-20	32	32-32.4	15	39/42
DJ-S-M40SLW(15-23)	DJ-S-M40SLB(15-23)	M40×1.5	15-23	40	40-40.4	18	50/46
DJ-S-M40SLW(19-28)	DJ-S-M40SLB(19-28)	M40×1.5	19-28	40	40-40.4	18	50/46
DJ-S-M40SLW	DJ-S-M40SLB	M40×1.5	20-26	40	40-40.4	18	50/53
DJ-S-M50SLW(27-35)	DJ-S-M50SLB(27-35)	M50×1.5	27-35	50	50-50.4	18	60/56
DJ-S-M50SLW(22-29)	DJ-S-M50SLB(22-29)	M50×1.5	22-29	50	50-50.4	18	60/56
DJ-S-M50SLW	DJ-S-M50SLB	M50×1.5	25-31	50	50-50.4	18	60/61
DJ-S-M63SLW	DJ-S-M63SLB	M63×1.5	29-35	63	63-63.4	19	74/67
DJ-S-M63DLW(34-45)	DJ-S-M63DLB(34-45)	M63×1.5	34-45	63	63-63.4	19	74/68
DJ-S-M63SLW(28-39)	DJ-S-M63SLB(28-39)	M63×1.5	28-39	63	63-63.4	19	74/68
订货号		螺牙规格	适用电	螺纹外径	机板开孔	螺纹长度	板手
Order No.		Thread	缆外径	Thread	Panel	Thread	Spanner
			CableRange	O.D.	Mounting	Length	size
灰白色	黑色		Φ	D1	Hole	L1	A&F
White	Black
短螺纹标准型standard
DJ-S-PG7W	DJ-S-PG7B	PG7	3-6.5	12.5	12.5-12.8	8	18/16
DJ-S-PG9W	DJ-S-PG9B	PG9	4-8	15.2	15.2-15.8	8	22/19
DJ-S-PG11W	DJ-S-PG11B	PG11	44691	18.6	18.6-18.9	8	24/22
DJ-S-PG13.5W	DJ-S-PG13.5B	PG13.5	44724	20.4	20.4-20.7	9	27/24
DJ-S-PG16W	DJ-S-PG16B	PG16	44848	22.5	22.5-22.8	10	30/27
DJ-S-PG19W	DJ-S-PG19B	PG19	44910	24.1	24.1-24.5	10	30/28
DJ-S-PG21W	DJ-S-PG21B	PG21	13-18	28.3	28.3-28.7	10	36/33
DJ-S-PG25W	DJ-S-PG25B	PG25	16-21	30.1	30.1-30.3	11	37/36
DJ-S-PG29W	DJ-S-PG29B	PG29	18-25	37	37.0-37.4	12	45/42
DJ-S-PG36W	DJ-S-PG36B	PG36	22-32	47	47.0-47.4	14	58/53
DJ-S-PG42W	DJ-S-PG42B	PG42	32-38	54	54.0-54.4	14	63/61
DJ-S-PG48W	DJ-S-PG48B	PG48	37-44	59.3	59.3-59.7	14	69/65
DJ-S-PG63W	DJ-S-PG63B	PG63	42-50	70.2	70.3-70.7	27	86/72
长螺纹加厚型thickening
DJ-S-PG7SW	DJ-S-PG7SB	PG7	44597	12.5	12.5-12.8	8	18/16
DJ-S-PG9SW	DJ-S-PG9SB	PG9	44598	15.2	15.2-15.8	8	22/19
DJ-S-PG11SW	DJ-S-PG11SB	PG11	44627	18.6	18.6-18.9	8	24/22
DJ-S-PG13.5SW	DJ-S-PG13.5SB	PG13.5	44690	20.4	20.4-20.7	9	27/24
DJ-S-PG16SW	DJ-S-PG16SB	PG16	44754	22.5	22.5-22.8	10	30/27
DJ-S-PG19SW	DJ-S-PG19SB	PG19	44846	24.1	24.1-24.5	10	30/28
DJ-S-PG21SW	DJ-S-PG21SB	PG21	44820	28.3	28.3-28.7	10	36/33
DJ-S-PG25SW	DJ-S-PG25SB	PG25	13-18	30.1	30.1-30.3	11	37/36
DJ-S-PG29SW	DJ-S-PG29SB	PG29	13-20	37	37.0-37.4	12	45/42
DJ-S-PG36SW	DJ-S-PG36SB	PG36	20-26	47	47.0-47.4	14	58/53
DJ-S-PG42SW	DJ-S-PG42SB	PG42	25-31	54	54.0-54.4	14	63/61
DJ-S-PG48SW	DJ-S-PG48SB	PG48	37-44	29-35	59.3-59.7	14	69/65
型号		螺牙规格	适用电	螺纹外径	机板开孔	螺纹长度	板手
Item No.		Thread	缆外径	Thread	Panel	Thread	Spanner
			CableRange	O.D.	Mounting	Length	size
灰白色	黑色		￠	D1	Hole	L1	A&F
White	Black
加长标准型
DJ-S-PG7LW	DJ-S-PG7LB	PG7	3-6.5	12.5	12.5-12.8	15	18/16
DJ-S-PG9LW	DJ-S-PG9LB	PG9	44659	15.2	15.2-15.8	15	22/19
DJ-S-PG11LW	DJ-S-PG11LB	PG11	44691	18.6	18.6-18.9	15	24/22
DJ-S-PG13.5LW	DJ-S-PG13.5LB	PG13.5	44724	20.4	20.4-20.7	15	27/24
DJ-S-PG16LW	DJ-S-PG16LB	PG16	44848	22.5	22.5-22.8	15	30/27
DJ-S-PG21LW	DJ-S-PG21LB	PG21	13-18	28.3	28.3-28.7	15	36/33
DJ-S-PG29LW	DJ-S-PG29LB	PG29	18-25	37	37.0-37.4	18	45/42
DJ-S-PG36LW	DJ-S-PG36LB	PG36	22-32	47	47.0-47.4	18	58/53
DJ-S-PG42LW	DJ-S-PG42LB	PG42	32-38	54	54.0-54.4	18	63/61
DJ-S-PG48LW	DJ-S-PG48LB	PG48	37-44	59.3	59.3-59.7	18	69/65
加长加厚型
DJ-S-PG7SLW	DJ-S-PG7SLB	PG7	44597	12.5	12.5-12.8	15	18/16
DJ-S-PG9SLW	DJ-S-PG9SLB	PG9	44598	15.2	15.2-15.8	15	22/19
DJ-S-PG11SLW	DJ-S-PG11SLB	PG11	44627	18.6	18.6-18.9	15	24/22
DJ-S-PG13.5SLW	DJ-S-PG13.5SLB	PG13.5	44690	20.4	20.4-20.7	15	27/24
DJ-S-PG16SLW	DJ-S-PG16SLB	PG16	44754	22.5	22.5-22.8	15	30/27
DJ-S-PG21SLW	DJ-S-PG21SLB	PG21	44820	28.3	28.3-28.7	15	36/33
DJ-S-PG29SLW	DJ-S-PG29SLB	PG29	13-20	37	37.0-37.4	18	45/42
DJ-S-PG36SLW	DJ-S-PG36SLB	PG36	20-26	47	47.0-47.4	18	58/53
DJ-S-PG42SLW	DJ-S-PG42SLB	PG42	25-31	54	54.0-54.4	18	63/61
DJ-S-PG48SLW	DJ-S-PG48SLB	PG48	37-44	29-35	59.3-59.7	18	69/65
订货号 Order No.		螺牙规格	适用电	螺纹外径	螺纹长度	接合长度
		Thread	缆外径	Thread	Thread	Thread
			CableRange	O.D.	Length	Length
灰白色	黑色		Φ	D1	L1	L2
White	Black
标准型 Standard
DJ-S-NPT 1/4W	DJ-S-NPT 1/4B	NPT 1/4"	3-6.5	13.6	8	22
DJ-S-NPT 3/8W	DJ-S-NPT 3/8B	NPT 3/8"	4-8	17.1	15	26
DJ-S-NPT 1/2W	DJ-S-NPT 1/2B	NPT 1/2"	6-12	21.2	13	30
DJ-S-NPT 1/2DW	DJ-S-NPT 1/2DB	NPT 1/2"	10-14	21.2	13	30
DJ-S-NPT 3/4W	DJ-S-NPT 3/4B	NPT 3/4"	13-18	26.6	15	37
DJ-S-NPT 1W	DJ-S-NPT 1B	NPT 1 "	18-25	33.2	16	40
DJ-S-NPT1-1/4W	DJ-S-NPT1-1/4B	NPT 11/4"	18-25	42.0	18	48
DJ-S-NPT1-1/2W	DJ-S-NPT1-1/2B	NPT 11/2"	22-32	48.1	15	49
DJ-S-NPT 2W	DJ-S-NPT 2B	NPT 2"	37-44	60.1	20	50
DJ-S-G1/4W	DJ-S-G1/4B	G 1/4"	3-6.5	13.2	8	22
DJ-S-G3/8W	DJ-S-G3/8B	G 3/8"	4-8	16.7	15	26
DJ-S-G1/2W	DJ-S-G1/2B	G 1/2"	6-12	20.9	13	30
DJ-S-G1/2DW	DJ-S-G1/2DB	G 1/2"	10-14	20.9	13	30
DJ-S-G3/4W	DJ-S-G3/4B	G 3/4"	13-18	26.4	15	37
DJ-S-G1W	DJ-S-G1B	G 1"	18-25	33.2	16	40
DJ-S-G1-1/4W	DJ-S-G1-1/4B	G 11/4"	22-32	41.9	18	48
DJ-S-G1-1/2W	DJ-S-G1-1/2B	G 11/2"	32-48	47.8	15	49
DJ-S-G2W	DJ-S-G2B	G 2"	37-44	59.6	15	50
加厚型 Thichening
DJ-S-NPT 1/4SW	DJ-S-NPT 1/4SB	NPT 1/4"	2-5	13.6	8	22
DJ-S-NPT 3/8SW	DJ-S-NPT 3/8SB	NPT 3/8"	2-6	17.1	15	26
DJ-S-NPT 1/2SW	DJ-S-NPT 1/2SB	NPT 1/2"	5-9	21.2	13	30
DJ-S-NPT 1/2SW(7-12)	DJ-S-NPT 1/2SB(7-12)	NPT 1/2"	7-12	21.2	13	30
DJ-S-NPT 3/4SW	DJ-S-NPT 3/4SB	NPT 3/4"	9-16	26.6	15	37
DJ-S-NPT 1SW	DJ-S-NPT 1SB	NPT 1 "	13-20	33.2	16	40
DJ-S-NPT1-1/4SW	DJ-S-NPT1-1/4SB	NPT 11/4"	13-20	42.0	18	48
DJ-S-NPT1-1/2SW	DJ-S-NPT1-1/2SB	NPT 11/2"	20-26	48.1	15	49
DJ-S-G1/4SW	DJ-S-G1/4SB	G 1/4"	2-5	13.2	8	22
DJ-S-G3/8SW	DJ-S-G3/8SB	G 3/8"	2-6	16.7	15	26
DJ-S-G1/2SW	DJ-S-G1/2SB	G 1/2"	5-9	20.9	13	30
DJ-S-G1/2SW(7-12)	DJ-S-G1/2SB(7-12)	G1/2"	7-12	20.9	13	30
DJ-S-G3/4SW	DJ-S-G3/4SB	G 3/4"	9-16	26.4	15	37
DJ-S-G1SW	DJ-S-G1SB	G 1"	13-20	33.2	16	40
DJ-S-G1-1/4SW	DJ-S-G1-1/4SB	G 11/4"	13-20	41.9	18	48
DJ-S-G1-1/2SW	DJ-S-G1-1/2SB	G 11/2"	20-26	47.8	15	49
DJ-S-G2SW	DJ-S-G2SB	G 2"	29-35	59.6	15	50
