DJ-SCG 防折弯电缆接头
螺牙规格：管螺纹G/PF牙，公制螺纹Metric,德制螺纹PG，美制NPT牙
产品材质：A.C.D.F部位均采用环保尼龙66(NYLON66)原料制成。B. E采用EPDM三元乙丙橡胶制成。
产品认证：CE,环保ROHS。
颜色种类：灰白色，黑色。
防护等级：在规定的卡口范围内，并使用防水垫片及夹紧圈旋紧迫紧头，达到IP68。
工作温度：静态-40°C至85°C。
使用方法：先将本体穿于机板，再以螺母扭紧固定，线缆穿过迫紧头，扭紧迫紧头将其固定。

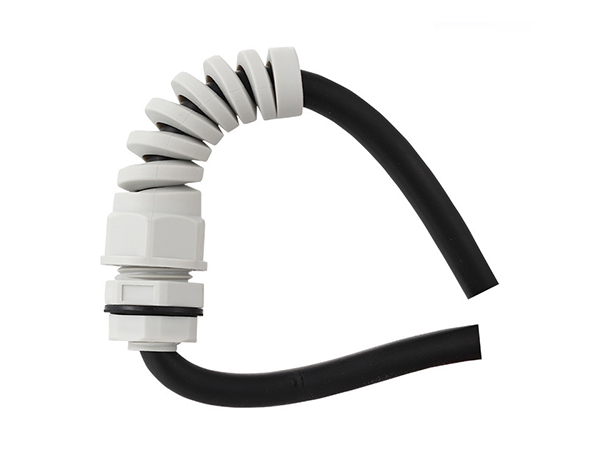

产品特性：本产品迫紧头为螺旋式结构，用于手控或移动设备防电缆过度弯曲损坏电缆设计用。夹紧爪与夹紧圈一体成型之设计，配合防松迫紧头装配省时便利，夹紧电缆范围大，固定电缆抗拉力超强， 气密性更完美，可沉于水下持续防水、水上防尘、户外耐老化UV过1000小时，耐化学物质与一般溶剂。

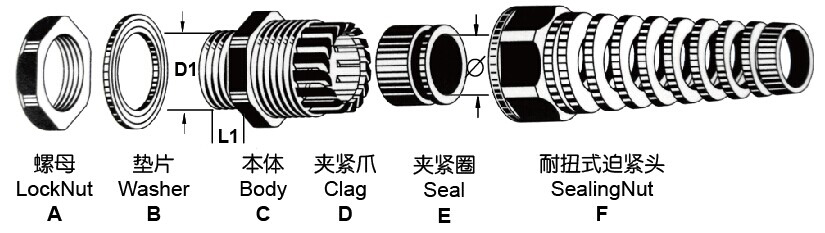

备注：成品均配带螺母A及防水垫片B
| 型号 | 公制螺纹 | 电缆范围 | 螺纹外径 | 螺纹长度 | 扳手径 | 包装：个 |
| Model | Metric Thread | Cable Range
(mm) | Thread 0.D
AG(mm) | Thread Length
GL(mm) | Spanner Size
A/F(mm) | Std. Pkg
(Pcs) |
| DJ-SCG-M12S-06 | M12×1.5 | 3~6.5 | 12 | 8.5 | 18/16 | 50 |
| DJ-SCG-M12SL-06 | M12×1.5 | 3~6.5 | 12 | 15 | 18/16 | 50 |
| DJ-SCG-M12-08 | M12×1.5 | 4~8 | 12 | 8.5 | 18/19 | 50 |
| DJ-SCG-M12L-08 | M12×1.5 | 4~8 | 12 | 15 | 18/19 | 50 |
| DJ-SCG-M16S-08 | M16×1.5 | 4~8 | 16 | 10 | 22/19 | 50 |
| DJ-SCG-M16SL-08 | M16×1.5 | 4~8 | 16 | 15 | 22/19 | 50 |
| DJ-SCG-M16-07 | M16×1.5 | 4~7 | 16 | 10 | 22 | 50 |
| DJ-SCG-M16-10 | M16×1.5 | 6~10 | 16 | 10 | 22 | 50 |
| DJ-SCG-M16L-07 | M16×1.5 | 4~7 | 16 | 15 | 22 | 50 |
| DJ-SCG-M16L-10 | M16×1.5 | 6~10 | 16 | 15 | 22 | 50 |
| DJ-SCG-M20S-12 | M20×1.5 | 8~12 | 20 | 10 | 27/24 | 20 |
| DJ-SCG-M20-12 | M20×1.5 | 8~12 | 20 | 11 | 27 | 20 |
| DJ-SCG-M20-14 | M20×1.5 | 10~14 | 20 | 11 | 27 | 20 |
| DJ-SCG-M20SL-12 | M20×1.5 | 8~12 | 20 | 15 | 27 | 20 |
| DJ-SCG-M20L-14 | M20×1.5 | 10~14 | 20 | 15 | 27 | 20 |
| DJ-SCG-M25S-14 | M25×1.5 | 10~14 | 25 | 11.6 | 33/27 | 20 |
| DJ-SCG-M25-13 | M25×1.5 | 7~13 | 25 | 11.6 | 33 | 20 |
| DJ-SCG-M25-18 | M25×1.5 | 13~17.5 | 25 | 11.6 | 33 | 20 |
| DJ-SCG-M32-25 | M32×1.5 | 18~25 | 32 | 15 | 41 | 10 |
| 型号 | 德制螺纹 | 电缆范围 | 螺纹外径 | 螺纹长度 | 扳手径 | 包装：个 |
| Model | PG Thread | cable Range
(mm) | Thread 0.D
AG(mm) | Thread Length
GL(mm) | Spanner Size
A/F(mm) | Std.Pkg
(Pcs) |
| DJ-SCG-PG7S-06 | PG7 | 2~6.5 | 12.5 | 8 | 17/15 | 50 |
| DJ-SCG-FG7-08 | PG7 | 4~8 | 12.5 | 8 | 17/19 | 50 |
| DJ-SCG-PG9-08 | PG9 | 4~8 | 15.2 | 8.2 | 22/19 | 50 |
| DJ-SCG-FG11-07 | PG11 | 3~7 | 18.6 | 10 | 24/22 | 50 |
| DJ-SCG-PG11-10 | PG11 | 4~10 | 18.6 | 10 | 24/22 | 50 |
| DJ-SCG-PG13.5-09 | PG13.5 | 3~9 | 20.4 | 10 | 27/24 | 20 |
| DJ-SCG-PG13.5-12 | PG13.5 | 5~12.5 | 20.4 | 10 | 27/24 | 20 |
| SCG-PB-PG16-11 | PG16 | 5~11 | 22.5 | 10.8 | 30/27 | 20 |
| DJ-SCG-PG16-14 | PG16 | 6~14 | 22.5 | 10.8 | 30/27 | 20 |
| DJ-SCG-PG21-13 | PG21 | 7~13 | 28.3 | 12 | 36/33 | 20 |
| DJ-SCG-PG21-18 | PG21 | 13~17.5 | 28.3 | 12 | 36/33 | 20 |
| DJ-SCG-FG29-25 | PG29 | 18~25 | 37 | 12 | 46/41 | 10 |
| 型号 | 英制螺纹 | 电缆范围 | 螺纹外径 | 螺纹长度 | 扳手径 | 包装：个 |
| Model | G Thread | Cable Range
(mm) | Thread 0.D
AG(mm) | Thread Length
GL(mm) | Spanner Size
A/F(mm) | Std. Pkg
(Pes) |
| DJ-SCG-G3/8-07 | G3/8 | 3~7 | 16.7 | 10 | 22 | 50 |
| DJ-SCG-G3/8-10 | G3/8 | 4~10 | 16.7 | 10 | 22 | 50 |
| DJ-SCG-G1/2-09 | G1/2 | 3~9 | 20.5 | 10 | 27/24 | 20 |
| DJ-SCG-G1/2-12 | G1/2 | 5~12.5 | 20.5 | 10 | 27/24 | 20 |
| DJ-SCG-G3/4-13 | G3/4 | 7~13 | 26.4 | 12 | 33/27 | 20 |
| DJ-SCG-G3/4-18 | G3/4 | 13~17.5 | 26.4 | 12 | 33/27 | 20 |
| DJ-SCG-G1-25 | G1 | 18~25 | 33.2 | 15 | 46/41 | 10 |
| 型号 | 美制螺纹 | 电缆范围 | 螺纹外径 | 螺纹长度 | 扳手径 | 包装：个 |
| Model | NPT Thread | Cable Range
(mm) | Thread 0.D
AG(mm) | Thread Length
GL(mm) | Spanner Size
A/F(mm) | Std.Pkg
(Pcs) |
| DJ-SCG-NPT3/8-07 | NPT3/8 | 3~7 | 17.1 | 10 | 22 | 50 |
| DJ-SCG-NPT3/8-10 | NPT3/8 | 4~10 | 17.1 | 10 | 22 | 50 |
| DJ-SCG-NPT3/8-09 | NPT1/2 | 5~9 | 21.3 | 10 | 24 | 20 |
| DJ-SCG-NPT1/2-12 | NPT1/2 | 7~13 | 21.3 | 10 | 24 | 20 |
| DJ-SCG-NPT3/4-13 | NPT3/4 | 7~13 | 26.4 | 12 | 33/27 | 20 |
| DJ-SCG-NPT3/4-18 | NPT3/4 | 13~17.5 | 26.4 | 12 | 33/27 | 20 |
| DJ-SCG-NPT1-25 | NPT1 | 18~25 | 33.2 | 15 | 46/41 | 10 |
