DJ-SMA 多孔尼龙电缆接头

发布时间: 2021-08-23 13:49

商品信息

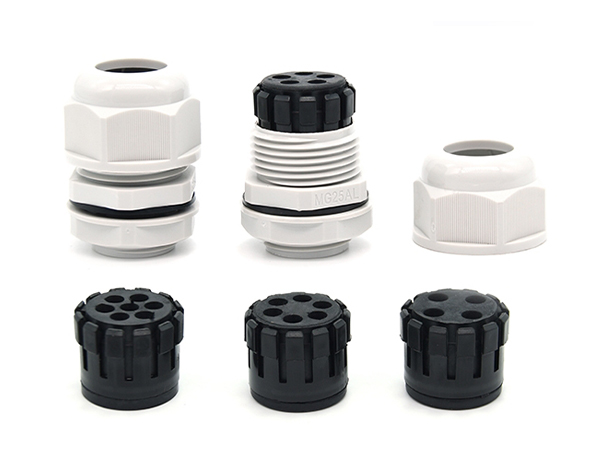

DJ-SMA 多孔尼龙电缆接头

螺牙规格：管螺纹G/PF牙，公制螺纹Metric,德制螺纹PG，美制NPT牙

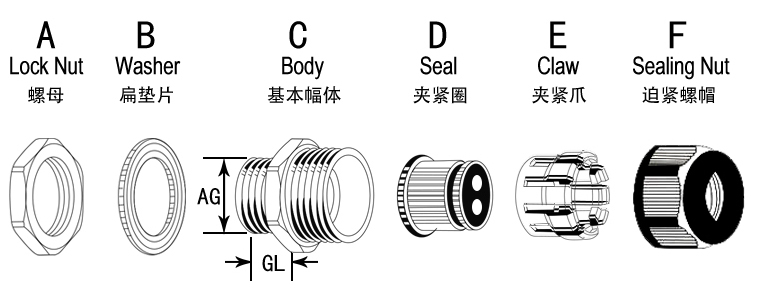

产品材质：A.C.D.F部位均采用环保尼龙66(NYLON66)原料制成。B耐老化硅橡胶制成。 E采用EPDM三元乙丙橡胶制成。

产品认证：CE,环保ROHS。

颜色种类：灰白色，黑色。

防护等级：在规定的卡口范围内，并使用防水垫片及夹紧圈旋紧迫紧头，达到IP68。

工作温度：静态-40°C至85°C。

使用方法：先将本体穿于机板，再以螺母扭紧固定，线缆穿过迫紧头，扭紧迫紧头将其固定。

产品特性：夹紧爪与夹紧圈一体成型之设计，配合迫紧头装配省时便利，夹紧电缆范围大，抗拉力强，可防水、防尘、抗盐、耐酸碱、酒精、油、脂及一般溶剂。应用于电缆出线端的固定保护及密封防尘水。

备注：成品均配带螺母A及防水垫片B

型号	公制螺纹	多孔数量	电缆范围	螺纹外径	螺纹长度	扳手径
Model	Metric Thread	Seal Holes (Pcs)	Cable Range (mm)	Thread O.D AG(mm)	Thread Length GL(mm)	Spanner Size A/F(mm)
DJ-SMA-M12-H2-03	M12×1.5	2	1.2~3	12.0	8.5	18/19
DJ-SMA-M12-H3-02	M12×1.5	3	1.2~2.6	12.0	8.5	18/19
DJ-SMA-M12-H4-02	M12×1.5	4	1~2.3	12.0	8.5	18/19
DJ-SMA-M16-H2-04	M16×1.5	2	1.6~4	16.0	15	22
DJ-SMA-M16-H3-03	M16×1.5	3	1.5~3	16.0	15	22
DJ-SMA-M16-H3-04	M16×1.5	3	1.6~4	16.0	15	22
DJ-SMA-M16-H4-03	M16×1.5	4	1.5~3.2	16.0	15	22
DJ-SMA-M16-H5-02	M16×1.5	5	1~2.5	16.0	15	22
DJ-SMA-M16-H6-02	M16×1.5	6	1~2.1	15.0	15	22
DJ-SMA-M20-H2-06	M20×1.5	2	2.5~6	20.0	15	27
DJ-SMA-M20-H3-05	M20×1.5	3	2~5	20.0	15	27
DJ-SMA-M20-H4-02	M20×1.5	4	1~2.5	20.0	15	27
DJ-SMA-M20-H4-03	M20×1.5	4	1.5~3.5	20.0	15	27
DJ-SMA-M20-H4-04	M20×1.5	4	2~4.5	20.0	15	27
DJ-SMA-M20-H5-03	M20×1.5	5	1.5~3	20.0	15	27
DJ-SMA-M22-H2-06	M22×1.5	2	2.5~6	22.0	10	29/27
DJ-SMA-M22-H3-05	M22×1.5	3	2~5	22.0	10	29/27
DJ-SMA-M22-H4-02	M22×1.5	4	1~2.5	22.0	10	29/27
DJ-SMA-M22-H4-03	M22×1.5	4	1.5~3.5	22.0	10	29/27
DJ-SMA-M22-H4-04	M22×1.5	4	2~4.5	22.0	10	29/27
DJ-SMA-M25-H2-05	M25×1.5	2	3~5.5	25.0	15	33
DJ-SMA-M25-H2-06	M25×1.5	2	2.5~6	25.0	15	33
DJ-SMA-M25-H2-07	M25×1.5	2	5~7	25.0	15	33
DJ-SMA-M25-H2-08	M25×1.5	2	6~8	25.0	15	33
DJ-SMA-M25-H3-05	M25×1.5	3	2~5	25.0	15	33
DJ-SMA-M25-H3-07	M25×1.5	3	5~7	25.0	15	33
DJ-SMA-M25-H3-08	M25×1.5	3	6~8	25.0	15	33
DJ-SMA-M25-H4-03	M25×1.5	4	1.5~3	25.0	15	33
DJ-SMA-M25-H4-05	M25×1.5	4	3~5	25.0	15	33
DJ-SMA-M25-H4-06	M25×1.5	4	4~6	25.0	15	33
DJ-SMA-M25-H4-07	M25×1.5	4	5~7	25.0	15	33
DJ-SMA-M25-H5-05	M25×1.5	5	3~5	25.0	15	33
DJ-SMA-M25-H5-06	M25×1.5	5	4~6	25.0	15	33
DJ-SMA-M25-H6-05	M25×1.5	6	2~5.3	25.0	15	33
DJ-SMA-M25-H7-04	M25×1.6	7	2~4.3	25.0	15	33
DJ-SMA-M25-H8-04	M25×1.6	8	3~4	25.0	15	33
DJ-SMA-M32-H2-10	M32×1.5	2	5~10	32.0	15	41
DJ-SMA-M32-H3-10	M32×1.5	3	5~10	32.0	15	41
DJ-SMA-M32-H4-07	M32×1.5	4	3.5~7	32.0	15	41
DJ-SMA-M32-H4-09	M32×1.5	4	4.5~9	32.0	15	41
DJ-SMA-M32-H5-08	M32×1.5	5	5~8	32.0	15	41
DJ-SMA-M32-H6-05	M32×1.5	6	3~5.5	32.0	15	41
DJ-SMA-M32-H6-07	M32×1.5	6	3.5~7	32.0	15	41
DJ-SMA-M32-H7-06	M32×1.5	7	4~6	32.0	15	41
DJ-SMA-M40-H2-13	M40×1.5	2	7~13	40.0	20	50
DJ-SMA-M40-H3-12	M40×1.5	3	10~12	40.0	20	50
DJ-SMA-M40-H3-14	M40×1.5	3	12~14	40.0	20	50
DJ-SMA-M40-H4-12	M40×1.5	4	10~12	40.0	20	50
DJ-SMA-M50-H3-12	M50×1.5	3	10~12	50.0	20	62
DJ-SMA-M63-H3-13	M63×1.5	3	10~13	63.0	25	75/78
DJ-SMA-M32-H3-10	M32×1.5	3	5~10	32.0	15	41
DJ-SMA-M32-H4-07	M32×1.5	4	3.5~7	32.0	15	41
DJ-SMA-M32-H4-09	M32×1.5	4	4.5~9	32.0	15	41
DJ-SMA-M32-H5-08	M32×1.5	5	5~8	32.0	15	41
DJ-SMA-M32-H6-05	M32×1.5	6	3~5.5	32.0	15	41
DJ-SMA-M32-H6-07	M32×1.5	6	3.5~7	32.0	15	41
DJ-SMA-M32-H7-06	M32×1.5	7	4~6	32.0	15	41
DJ-SMA-M40-H2-13	M40×1.5	2	7~13	40.0	20	50
DJ-SMA-M40-H3-12	M40×1.5	3	10~12	40.0	20	50
DJ-SMA-M40-H3-14	M40×1.5	3	12~14	40.0	20	50
DJ-SMA-M40-H4-12	M40×1.5	4	10~12	40.0	20	50
DJ-SMA-M50-H3-12	M50×1.5	3	10~12	50.0	20	62
DJ-SMA-M63-H3-13	M63×1.5	3	10~13	63.0	25	75/78
型号	德制螺纹	多孔数量	电缆范围	螺纹外径	螺纹长度	扳手径
Model	PG Thread	Seal Holes (Pcs)	Cable Range (mm)	Thread O.D AG(mm)	Thread Length GL(mm)	Spanner Size A/F(mm)
DJ-SMA-PG7-H2-03	PG7	2	1.2~3	12.5	8.5	18/19
DJ-SMA-PG7-H3-2.5	PG7	3	1.2~2.6	12.5	8.5	18/19
DJ-SMA-PG7-H4-02	PG7	4	1~2.3	12.5	8.5	18/19
DJ-SMA-PG9-H2-04	PG9	2	1.6~4	15.2	8.5	22
DJ-SMA-PG9-H3-2.5	PG9	3	1.2~2.6	15.2	8.5	22
DJ-SMA-PG9-H4-02	PG9	4	1.2~2.3	15.2	8.5	22
DJ-SMA-PG11-H2-04	PG11	2	1.6~4	18.6	10	24/22
DJ-SMA-PG11-H3-03	PG11	3	1.5~3	18.6	10	24/22
DJ-SMA-PG11-H3-04	PG11	3	2~4	18.6	10	24/22
DJ-SMA-PG11-H4-03	PG11	4	1.5~3	18.6	10	24/22
DJ-SMA-PG11-H6-02	PG11	6	1.2~2.1	18.6	10	24/22
DJ-SMA-PG13.5-H2-05	PG13.5	2	3~5.3	20.4	10	27
DJ-SMA-PG13.5-H3-05	PG13.5	3	2~5	20.4	10	27
DJ-SMA-PG13.5-H4-04	PG13.5	4	2~4	20.4	10	27
DJ-SMA-PG16-H2-06	PG16	2	2.5~6	22.5	10.8	29/27
DJ-SMA-PG16-H3-05	PG16	3	2~5	22.5	10.8	29/27
DJ-SMA-PG16-H4-02	PG16	4	1~2.5	22.5	10.8	29/27
DJ-SMA-PG16-H4-03	PG16	4	1.5~3.5	22.5	10.8	29/27
DJ-SMA-PG16-H4-04	PG16	4	2~4.5	22.5	10.8	29/27
DJ-SMA-PG16-H5-03	PG16	5	1.5~3	22.5	10.8	29/27
DJ-SMA-PG21-H2-05	PG21	2	3~5.5	28.3	12	33
DJ-SMA-PG21-H2-06	PG21	2	2.5~6	28.3	12	33
DJ-SMA-PG21-H2-07	PG21	2	5~7	28.3	12	33
DJ-SMA-PG21-H2-08	PG21	2	6~8	28.3	12	33
DJ-SMA-PG21-H2-09	PG2]	2	7~8.7	28.3	12	33
DJ-SMA-PG21-H3-05	PG21	3	2~5	28.3	12	33
DJ-SMA-PG21-H3-07	PG21	3	4~7	28.3	12	33
DJ-SMA-PG21-H3-08	PG21	3	5~8	28.3	12	33
DJ-SMA-PG21-H4-03	PG21	4	1.5~3	28.3	12	33
DJ-SMA-PG21-H4-05	PG21	4	2~5	28.3	12	33
DJ-SMA-PG21-H4-06	PG21	4	3~6	28.3	12	33
DJ-SMA-PG21-H4-07	PG21	4	4~7	28.3	12	33
DJ-SMA-PG21-H5-05	PG21	5	2~5	28.3	12	33
DJ-SMA-PG21-H5-06	PG21	5	3~6	28.3	12	33
DJ-SMA-PG21-H6-05	PG21	6	3~5.3	28.3	12	33
DJ-SMA-PG21-H7-04	PG21	7	2~4.3	28.3	12	33
DJ-SMA-PG21-H8-04	PG21	8	2~4	28.3	12	33
DJ-SMA-PG29-H2-10	PG29	2	5~10	37.0	15	41
DJ-SMA-PG29-H3-10	PG29	3	5~10	37.0	15	41
DJ-SMA-PG29-H4-07	PG29	4	4~7	37.0	15	41
DJ-SMA-PG29-H4-09	PG29	4	4.5~9	37.0	15	41
DJ-SMA-PG29-H5-8	PG29	5	4~8	37.0	15	41
DJ-SMA-PG29-H6-05	PG29	6	2~5	37.0	15	41
DJ-SMA-PG29-H6-07	PG29	6	4~7	37.0	15	41
DJ-SMA-PG36-H2-13	PG36	2	11~13	47.0	15	50
DJ-SMA-PG36-H3-12	PG36	3	10~12	47.0	15	50
DJ-SMA-PG36-H3-14	PG36	3	12~14	47.0	15	50
DJ-SMA-PG36-H4-12	PG36	4	10~12	47.0	15	50
DJ-SMA-PG42-H3-12	PG42	3	10~12	54.0	15	50
型号	英制螺纹	多孔数量	电缆范围	螺纹外径	螺纹长度	扳手径
Model	G Thread	Seal Holes (Pcs)	Cable Range (mm)	Thread O.D AG(mm)	Thread Length GL(mm)	Spanner Size A/F(mm)
DJ-SMA-G1/4-H2-03	G1/4	2	1.2~3	12.5	8.5	18/19
DJ-SMA-G1/4-H3-02	G1/4	3	1.2~2.6	12.5	8.5	18/19
DJ-SMA-G1/4-H4-02	G1/4	4	1~2.3	12.5	8.5	18/19
DJ-SMA-G3/8-H2-04	G3/8	2	2~4	15.2	8.5	22
DJ-SMA-G3/8-H3-03	G3/8	3	1.2~3	15.2	8.5	22
DJ-SMA-G3/8-H3-04	G3/8	3	2~4	15.2	8.5	22
DJ-SMA-G3/8-H4-03	G3/8	4	1.2~3	15.2	8.5	22
DJ-SMA-G3/8-H6-02	G3/8	6	1.4~2.1	15.2	8.5	22
DJ-SMA-G1/2-H2-05	G1/2	2	2~5	18.6	15	24/22
DJ-SMA-G1/2-H2-06	G1/2	2	2.5~6	18.6	15	24/22
DJ-SMA-G1/2-H3-05	G1/2	3	2~5	18.6	15	24/22
DJ-SMA-G1/2-H4-02	G1/2	4	1~2.5	18.6	15	24/22
DJ-SMA-G1/2-H4-03	G1/2	4	1.5~3.5	18.6	15	24/22
DJ-SMA-G1/2-H4-04	G1/2	4	2~4.5	18.6	15	24/22
DJ-SMA-G1/2-H5-03	G1/2	5	1.2~3	18.6	15	24/22
DJ-SMA-G3/4-H2-05	G3/4	2	3~5.5	28.3	15	33
DJ-SMA-G3/4-H2-06	G3/4	2	2.5~6	28.3	15	33
DJ-SMA-G3/4-H2-07	G3/4	2	5~7	28.3	15	33
DJ-SMA-G3/4-H2-08	G3/4	2	6~8	28.3	15	33
DJ-SMA-G3/4-H2-09	G3/4	2	7~8.7	28.3	15	33
DJ-SMA-G3/4-H3-05	G3/4	3	2~5	28.3	15	33
DJ-SMA-G3/4-H3-07	G3/4	3	4~7	28.3	15	33
DJ-SMA-G3/4-H3-08	G3/4	3	6~8	28.3	15	33
DJ-SMA-G3/4-H4-03	G3/4	4	1.2~3	28.3	15	33
DJ-SMA-G3/4-H4-05	G3/4	4	2~5	28.3	15	33
DJ-SMA-G3/4-H4-06	G3/4	4	3.5~6	28.3	15	33
DJ-SMA-G3/4-H4-07	G3/4	4	4~7	28.3	15	33
DJ-SMA-G3/4-H5-05	G3/4	5	2~5	28.3	15	33
DJ-SMA-G3/4-H5-06	G3/4	5	3.5~6	28.3	15	33
DJ-SMA-G3/4-H6-05	G3/4	6	2.4~5.3	28.3	15	33
DJ-SMA-G3/4-H7-04	G3/4	7	3~4.3	28.3	15	33
DJ-SMA-G3/4-H8-04	G3/4	8	3~4	28.3	15	33
DJ-SMA-G1-H2-10	G1	2	7~10	33.2	12	30
DJ-SMA-G1-H3-10	G1	3	7~10	33.2	12	30
DJ-SMA-G1-H4-09	G1	4	6~9	33.2	12	30
DJ-SMA-G1-H5-08	G1	5	5~8	33.2	12	30
DJ-SMA-G1-H6-07	G1	6	4~7	33.2	12	30
DJ-SMA-G1-H7-06	G1	7	3.5-6	33.2	12	30
DJ-SMA-G11/4-H2-13	G11/4	2	11~13	37.0	15	41
DJ-SMA-G11/4-H3-12	G11/4	3	10~12	37.0	15	41
DJ-SMA-G11/4-H3-14	G11/4	3	12~14	37.0	15	41
DJ-SMA-G11/4-H4-12	G11/4	4	10~12	37.0	15	41
DJ-SMA-G11/2-H3-12	G11/2	3	10~12	47.0	20	50
DJ-SMA-G2-H3-13	G2	3	7~13	47.0	20	50
