KJ-S 快速波纹管接头
    发布时间: 2021-08-23 14:14

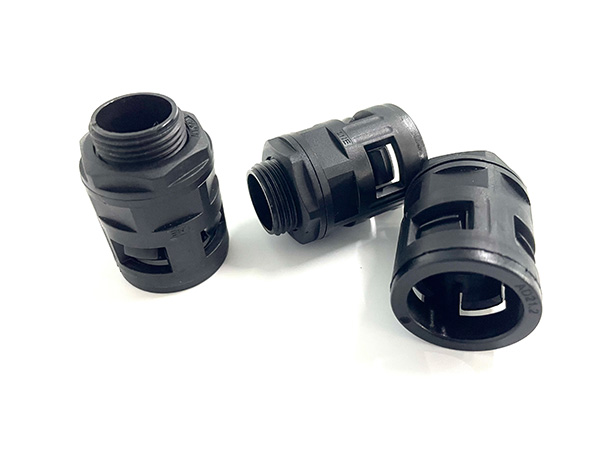

KJ-S 快速波纹管接头

KJ-S 尼龙快速软管接头 NYLON QUCIK CONDUIT CONNECTOR



螺牙标准连接螺纹螺纹长度螺纹外径孔内径孔外径高对应软管BWG订货号包装

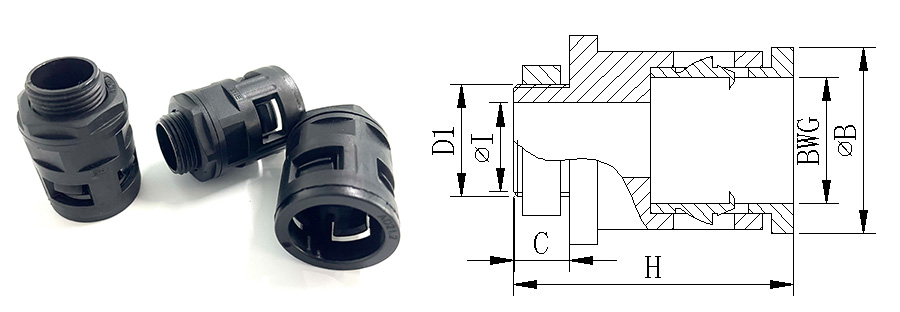

ACD1øIøBH
SpecificationThreadThreadLengthThread O.D.Smallest innerLargest outerTotal lengthItem No.Packing PCS
仕様ネジの
呼び		ネジ長ネジ
外径		内穴径外穴径高さ適応XINYIチューブサイズ品　番包装
単位
(個)
公制 MM12x1.51012717.032.5BWG-10KJ-S-M12/10100
M12x1.51012720.032.5BWG-13KJ-S-M12/13
M16x1.510161017.032.5BWG-10KJ-S-M16/10
M16x1.510161220.032.5BWG-13KJ-S-M16/13
M16x1.510161223.037.0BWG-15.8KJ-S-M16/15.8
M18x1.510181020.032.5BWG-13KJ-S-M18/13
M18x1.510181023.037.0BWG-15.8KJ-S-M18/15.8
M18x1.511181325.540.0BWG-18.5KJ-S-M18/18.5
M20x1.510201223.037.0BWG-15.8KJ-S-M20/15.8
M20x1.511201325.540.0BWG-18.5KJ-S-M20/18.5
M20x1.512201529.543.5BWG-21.2KJ-S-M20/21.2
M24x1.512241729.543.5BWG-21.2KJ-S-M24/21.2
M25x1.512252037.046.0BWG-28.5KJ-S-M25/28.520
M27x2.012272337.046.0BWG-28.5KJ-S-M27/28.5
M30x2.012302337.046.0BWG-28.5KJ-S-M30/28.5
M32x1.512323037.046.0BWG-28.5KJ-S-M32/28.5
M32x1.512323044.048.0BWG-34.5KJ-S-M32/34.5
M33x2.012333044.048.0BWG-34.5KJ-S-M33/34.5
M36x2.012363044.048.0BWG-34.5KJ-S-M36/34.5
M40x1.512403551.550.0BWG-42.5KJ-S-M40/42.510
M50x1.512503651.550.0BWG-54.5KJ-S-M50/54.5
M63x1.515634865.554.0BWG-54.5KJ-S-M63/54.5







　　
德制 PGPG71012.5717.032.5BWG-10KJ-S-PG7/10100
PG71012.5720.032.5BWG-13KJ-S-PG7/13
PG91012.5720.032.5BWG-13KJ-S-PG9/13
PG111018.6720.032.5BWG-13KJ-S-PG11/13
PG111015.21323.037.0BWG-15.8KJ-S-PG11/15.8
PG13.51020.41320.032.5BWG-13KJ-S-PG13/13
PG13.51020.41323.037.0BWG-15.8KJ-S-PG13/15.8
PG13.51120.41425.540.0BWG-18.5KJ-S-PG13/18.550
PG13.51220.41629.543.5BWG-21.2KJ-S-PG13/21.2
PG161222.51629.543.5BWG-21.2KJ-S-PG16/21.2
PG211228.32437.046.0BWG-28.5KJ-S-PG21/28.520
PG291237.03044.048.5BWG-34.5KJ-S-PG29/34.5
PG361247.03751.550.5BWG-42.5KJ-S-PG36/42.510
PG481559.34865.554.0BWG-54.5KJ-S-PG48/54.5

　　　　　　　　　
美制NNPT1/2"1221.31223.039.0BWG-15.8KJ-S-NPT02/15.8100
NPT1/2"1221.31729.543.5BWG-21.2KJ-S-12-NPT03/21.250
NPT3/4"1426.62137.047.5BWG-28.5KJ-S-12-NPT04/28.525
NPT1"1633.42844.052.0BWG-34.5KJ-S-22-NPT06/34.520
　　　　　　　　　　
英制 GG1/4"1013.16717.032.5BWG-10KJ-S-G1/4"/10.0　
G3/8"1016.661117.034.0BWG-10KJ-S-G3/8"/10.0　
G1/4"1013.16820.035.0BWG-13KJ-S-G1/4"/13.0　
G3/8"1016.661021.035.0BWG-13KJ-S-G3/8"/13.0　
G1/2"1220.961027.039.5BWG-13KJ-S-G1/2"/13.0　
G3/8"1016.661223.037.0BWG-15.8KJ-S-G3/8"/15.8　
G1/2"920.9612.523.036.0BWG-15.8KJ-S-G1/2"/15.8　
G1/2"1120.961426.039.0BWG-18.5KJ-S-G1/2"/18.5　
G1/2"1120.961429.544.0BWG-21.2KJ-S-G1/2"/21.2　
G3/4"1326.4420.537.048.0BWG-28.5KJ-S-G3/4"/28.5　
G1"11.533.252643.548.0BWG-34.5KJ-S-G1"/34.5　
G11/4"14.041.9133.551.052.0BWG-42.5KJ-S-G114"/42.5　
G11/2"14.047.842.563.053.5BWG-54.5KJ-S-G112"/54.5　
G2"14.059.6148.563.053.5BWG-54.5KJ-S-G2"/54.5　


螺牙规格德制螺牙PG 公制螺牙Metric 美制螺牙NPT
产品材质优质改良尼龙PA66制成
防护等级IP66
防火等级UL94(V2),低烟无卤
颜色种类黑色B，灰色G
工作温度 -40℃至110℃
产品特性内锁扣和本体特殊设计，装卸只需拔插无需工具
备注成品不带防水垫片，需另购
相关产品BWG-PP 聚丙烯波纹管  KJ-L 尼龙软管快速接头
