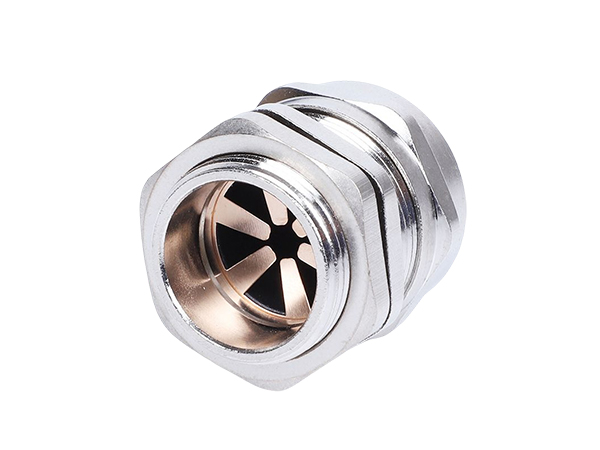

DJ-C 防电磁电缆接头（EMC型）
螺牙规格：公制螺牙(Metric)，英制螺牙G。

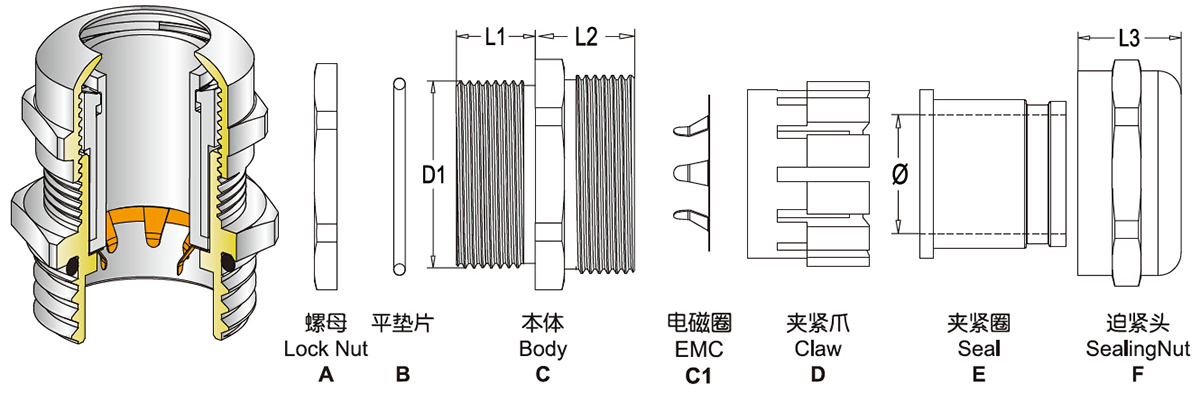

产品材质：A.C.F黄铜镀镍 C1紫铜片 D尼龙B.EEPDM耐老化橡胶。
产品认证：CE，ROHS
颜色种类：金属色
防护等级：在规定的卡口范围内，并使用防水O形圈及夹紧圈旋紧迫紧头，达到IP68。
工作温度：-40°C至100°C，瞬间可耐热达120°C。
产品特性：1.外型美观，结构紧密，强度更高。 2省时便利，抗拉力特强。
| 公制螺纹 M | 德制螺纹 PG | 美制螺纹 NPT | 英制螺纹 G | 适用电缆 | 螺纹长度 | 接合长度 |
| Cable | ThreadLength | Joint |
| Range | L1 | Length |
| | | L2+L3 |
| DJ-C-M12×1.5-6.5 | DJ-C-PG7-6.5 | DJ-C-NPT1/4-6.5 | DJ-C-G1/4-6.5 | 3-6.5 | 6 | 18 |
| DJ-C-M16×1.5-8 | DJ-C-PG9-8 | DJ-C-NPT1/4-8 | DJ-C-G1/4-8 | 4-8 | 8 | 20 |
| DJ-C-M18×1.5-10 | DJ-C-PG11-10 | | | 6-10 | 8 | 21 |
| DJ-C-M20×1.5-12 | DJ-C-PG13.5-12 | DJ-C-NPT1/2-12 | DJ-C-G1/2-12 | 8-12 | 8 | 22 |
| DJ-C-M22×1.5-14 | DJ-C-PG16-14 | DJ-C-NPT1/2-14 | DJ-C-G1/2-14 | 10-14 | 9 | 23 |
| DJ-C-M25×1.5-16 | | | | 10-16 | 9 | 25 |
| DJ-C-M27×2.0-18 | DJ-C-PG21-18 | DJ-C-NPT3/4-18 | DJ-C-G3/4-18 | 13-18 | 10 | 25 |
| DJ-C-M30×2.0-20 | | | | 15-20 | 11 | 25 |
| DJ-C-M32×1.5-22 | | | | 16-22 | 11 | 26 |
| DJ-C-M33×2.0-22 | | DJ-C-NPT1-22 | DJ-C-G1-22 | 16-22 | 11 | 30 |
| DJ-C-M36×1.5-25 | DJ-C-PG29-25 | | | 18-25 | 11 | 30 |
| DJ-C-M40×1.5-25 | | | | 18-25 | 12 | 31 |
| DJ-C-M40×1.5-28 | | | | 22-28 | 13 | 35 |
| DJ-C-M42×2.0-28 | | DJ-C-NPT1-1/4-28 | DJ-C-G1-1/4-28 | 22-28 | 12 | 31 |
| DJ-C-M40×1.5-32 | | | | 25-32 | 13 | 35 |
| DJ-C-M48×2.0-32 | DJ-C-PG36-32 | DJ-C-NPT1-1/2-32 | DJ-C-G1-1/2-32 | 25-32 | 13 | 35 |
| DJ-C-M50×1.5-36 | | | | 30-36 | 13 | 38 |
| DJ-C-M54×2.0-38 | DJ-C-PG42-38 | | | 32-38 | 13 | 38 |
| DJ-C-M60×2.0-44 | DJ-C-PG48-44 | DJ-C-NPT2-44 | DJ-C-G2-44 | 37-44 | 14 | 40 |
| DJ-C-M63×1.5-44 | | | | 37-44 | 14 | 40 |
| DJ-C-M64×2.0-44 | | | | 37-44 | 14 | 40 |
| DJ-C-M72×2.0-52 | | | | 42-52 | 15 | 40 |
| DJ-C-M75×2.0-55 | | DJ-C-NPT2-1/2-55 | DJ-C-G2-1/2-55 | 50-55 | 15 | 40 |
| DJ-C-M80×2.0-60 | | | | 55-60 | 15 | 40 |
| DJ-C-M88×2.0-70 | | | | 65-70 | 15 | 40 |
| DJ-C-M90×2.0-70 | | | | 65-70 | 15 | 40 |
