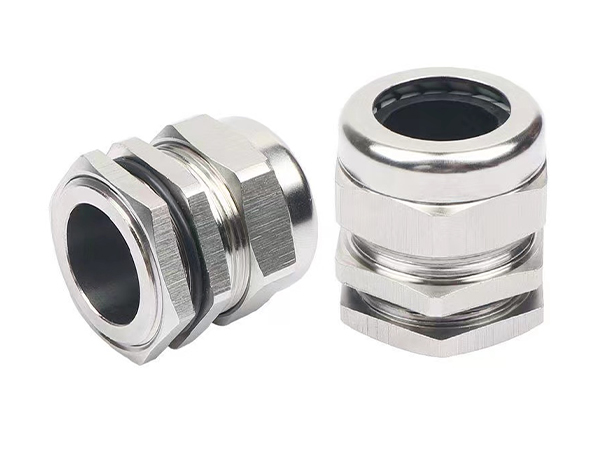

DJ-B不锈钢电缆接头(半通型)
![](https://pmtd4e8b6-pic16.websiteonline.cn/upload/1_nxyn.jpg)
螺牙规格:公制螺牙(Metric),英制螺牙G。

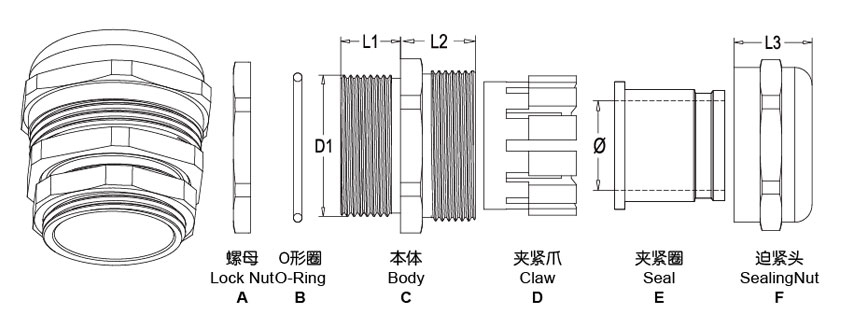

产品材质:A.C.F采用304不锈钢D尼龙B.E采用EPDM耐老化橡胶。
产品认证:CE,ROHS防爆EX
颜色种类:金属色银白色
防护等级:在规定的卡口范围内,并使用防水O形圈及夹紧圈旋紧迫紧头,达到IP68。
工作温度:-40°C至100°C,瞬间可耐热达120°C。
产品特性:1.外型美观,结构紧密,强度更高。2省时便利,抗拉力特强。
公制螺纹 M | 德制螺纹 PG | 美制螺纹 NPT | 英制螺纹 G | 适用电缆 | 螺纹长度 | 接合长度 |
Cable | ThreadLength | Joint |
Range | L1 | Length |
| | L2+L3 |
DJ-B-12×1.5-6.5 | PG7-6.5 | NPT1/4-6.5 | G1/4-6.5 | 3-6.5 | 6 | 18 |
DJ-B-16×1.5-8 | PG9-8 | | 4-8 | 7 | 20 |
DJ-B-18×1.5-10 | PG11-10 | NPT3/8-10 | G3/8-10 | 6-10 | 8 | 21 |
DJ-B-20×1.5-12 | PG13.5-12 | NPT1/2-12 | G1/2-12 | 8-12 | 8 | 22 |
DJ-B-20×1.5-14 | | 10-14 | 9 | 23 |
DJ-B-22×1.5-14 | PG16-14 | NPT1/2-14 | G1/2-14 | 10-14 | 9 | 23 |
DJ-B-24×1.5-16 | | 10-14 | 10 | 25 |
DJ-B-25×1.5-16 | | 10-16 | 10 | 25 |
DJ-B-25×1.5-18 | PG21-18 | NPT3/4-18 | G3/4-18 | 13-18 | 11 | 25 |
DJ-B-27×2.0-18 | | 13-18 | 11 | 25 |
DJ-B-30×2.0-18 | | 13-18 | 11 | 25 |
DJ-B-32×1.5-18 | | 13-18 | 11 | 25 |
DJ-B-32×1.5-22 | | 16-22 | 11 | 26 |
DJ-B-32×1.5-25 | PG29-25 | NPT1-25 | G1-25 | 18-25 | 11 | 30 |
DJ-B-33×2.0-22 | | 16-22 | 11 | 26 |
DJ-B-36×1.5-25 | | 18-25 | 11 | 30 |
DJ-B-40×1.5-28 | | 22-28 | 12 | 31 |
DJ-B-40×1.5-32 | PG36-32 | NPT1-1/4-32 | G1-1/4-32 | 22-32 | 13 | 35 |
DJ-B-42×2.0-30 | | 22-30 | 12 | 31 |
DJ-B-48×2.0-32 | | 22-32 | 13 | 35 |
DJ-B-50×1.5-36 | | NPT1-1/2-36 | G1-1/2-36 | 28-36 | 13 | 38 |
DJ-B-54×2.0-38 | PG42-38 | NPT1-1/2-38 | G1-1/2-38 | 32-38 | 13 | 38 |
DJ-B-60×2.0-44 | PG48-44 | NPT2-44 | G2-44 | 37-44 | 14 | 40 |
DJ-B-63×1.5-44 | | 37-44 | 14 | 40 |
DJ-B-72×2.0-52 | | 42-52 | 15 | 40 |
DJ-B-80×2.0-60 | | 55-60 | 20 | 40 |
DJ-B-88×2.0-70 | | 65-70 | 20 | 40 |
DJ-B-100×2.0-80 | | 70-80 | 20 | 40 |
