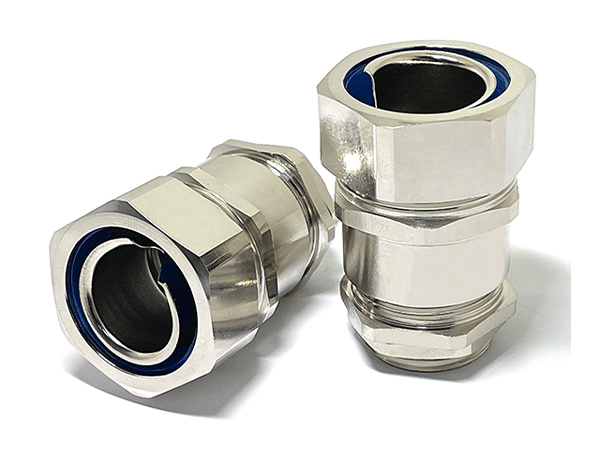

DDP-T带锁紧金属软管接头（直通型）
螺牙规格：管螺纹G/PF牙，公制螺纹Metric,德制螺纹PG

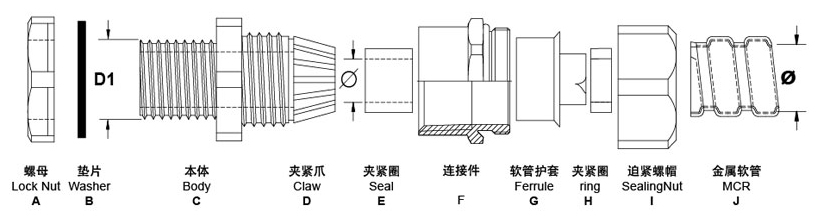

产品材质：A.C.F I部位均采用锌合金材质（可定制不锈钢304/316/316L）B.E.H采用丁腈橡胶(NBR) 制成。G为铁皮制成。
产品认证：CE,环保ROHS。
颜色种类：金属色
防护等级：IP67
工作温度：-40°C至100°C,瞬间可耐热达120°C.
产品特性： 1.外型美观，结构紧密，强度更高。 2.软管护套设计与软管相扣接紧之设计，配合迫紧头装配省时便利，抗拉力特强，3.可防水、防尘、抗盐、耐酸碱、酒精、油、脂及一般溶剂。 4.除以下标准规格外，可另按需求任意变动大小及螺纹标准。
备注：成品均配带螺母A及防水垫片B,可定制特殊规格不同的螺纹和配套软管。
| 型号 | 螺牙标准 | 适用电缆 | 配套金属软管JSH | 螺纹外径 | 螺纹长度 |
| Item No. | Thread | Suitable XYACC metal flexible conduit JSH | Thread | Thread |
| | G/M/PG | | O.D. | Length |
| | | | D1 | L1 |
| | | | | |
| | | | 对应型号 | 公制 | 英制 | | |
| | | | Corresponding | Metric ø | G | | |
| | | | item no | | | | |
| 公制螺牙/Metric thread DDP-M |
| DDP-03M | M16*1.5 | 6-10 | JSH-03 | 10 | 1/4" | M16*1.5 | 8 |
| DDP-04M | M16*1.5 | 6-10 | JSH-04 | 13 | 3/8" | M16*1.5 | 11 |
| DDP-05M | M20*1.5 | 8-12 | JSH-05 | 16 | 1/2" | M20*1.5 | 11 |
| DDP-06M | M25*1.5 | 10-14 | JSH-06 | 20 | 3/4" | M25*1.5 | 14 |
| DDP-08M | M32*1.5 | 15-22 | JSH-08 | 25 | 1" | M32*1.5 | 15 |
| DDP-10M | M40*1.5 | 18-25 | JSH-10 | 32 | 11/4" | M40*1.5 | 15 |
| DDP-12M | M50*1.5 | 26-32 | JSH-12 | 38 | 1.5 | M50*1.5 | 16 |
| DDP-16M | M63*1.5 | 37-44 | JSH-16 | 51 | 2" | M63*1.5 | 18 |
| DDP-20M | M76*2 | 42-52 | JSH-20 | 64 | 2 1/2" | M76*2 | 22 |
| DDP-24M | M88*2 | 55-62 | JSH-24 | 80 | 3" | M88*2 | 22 |
| DDP-32M | M114*2 | 78-84 | JSH-32 | 100 | 4" | M114*2 | 24 |
| 德制螺纹/Metric thread DDP-P |
| DDP-03P | PG9 | 4-8 | JSH-03 | 10 | 1/4" | 15.2 | 8 |
| DDP-04P | PG11 | 6-10 | JSH-04 | 13 | 3/8" | 18.6 | 9 |
| DDP-05P | PG13.5 | 8-12 | JSH-05 | 16 | 1/2" | 20.4 | 11 |
| DDP-06P | PG21 | 13-18 | JSH-06 | 20 | 3/4" | 28.3 | 14 |
| DDP-08P | PG29 | 18-25 | JSH-08 | 25 | 1" | 37 | 15 |
| DDP-10P | PG29 | 18-25 | JSH-10 | 32 | 1 1/4" | 37 | 15 |
| DDP-12P | PG36 | 26-32 | JSH-12 | 38 | 11/2" | 47 | 16 |
| DDP-16P | PG48 | 37-44 | JSH-16 | 51 | 2" | 59.3 | 18 |
| 管螺纹/Tube thread DDP-G |
| DDP-03G | G3/8" | 4-8 | JSH-03 | 10 | 1/4" | 16.5 | 8 |
| DDP-04G | G3/8" | 6-10 | JSH-04 | 13 | 3/8" | 16.5 | 8 |
| DDP-05G | G1/2" | 8-12 | JSH-05 | 16 | 1/2" | 21.3 | 11 |
| DDP-06G | G3/4" | 13-18 | JSH-06 | 20 | 3/4" | 26.6 | 14 |
| DDP-08G | G1" | 15-22 | JSH-08 | 25 | 1" | 33.4 | 15 |
| DDP-10G | G1 1/4" | 22-28 | JSH-10 | 32 | 11/4" | 42.1 | 15 |
| DDP-12G | G1 1/2" | 26-32 | JSH-12 | 38 | 11/2" | 47.8 | 16 |
| DDP-16G | G2" | 37-44 | JSH-16 | 51 | 2 | 59.6 | 18 |
